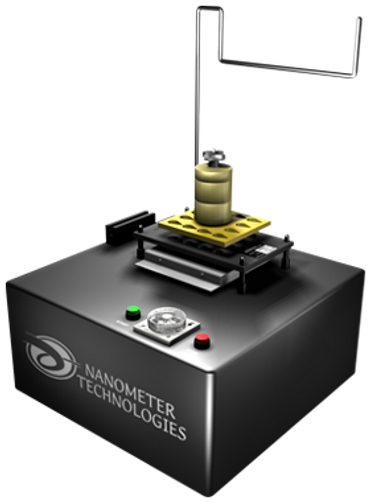

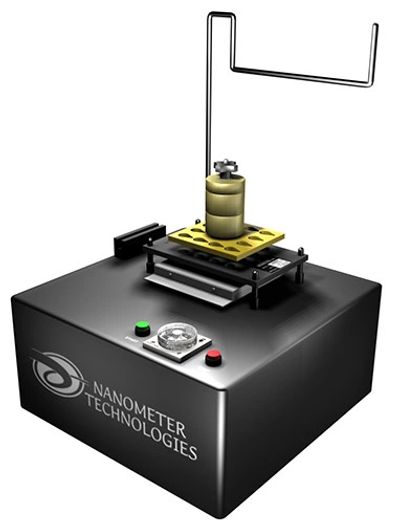

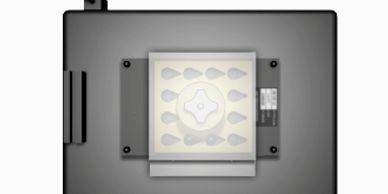

MCP-12 Mass Connector Polisher
Reduce Consumable Loss
Polish up to 24 connectors at once
Polish multiple connectors

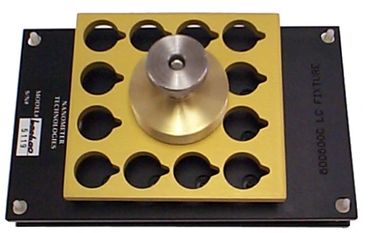

Fixture plates for the MCP-12 are designed to reduce consumable waste saving money and film.
Polish multiple connectors
Polish up to 24 connectors at once
Polish multiple connectors

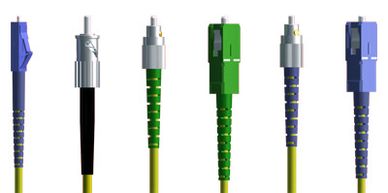

The MCP-12 can polish many types of industry standard, military, and custom connectors
Polish up to 24 connectors at once
Polish up to 24 connectors at once
Polish up to 24 connectors at once
24 connectors at a time.
Figure 8 Polishing Pattern
Figure 8 Polishing Pattern
Polish up to 24 connectors at once
All Nanometer Tech line of polishers utilize our patented figure 8 polishing pattern. The figure 8 polishing pattern creates an angle of attack on the connector end face that changes 720 degrees 60 times a second giving optimal connector end face geometry.
Advantages
Figure 8 Polishing Pattern
Specifications
Exclusive Figure 8 Polishing Pattern
· Reduce consumables cost
· Increase Production
· Repeatable performance
Pneumatic Pressure Control
Quickload Universal Polishing Plate™
· Polish FC / SC / ST / ESCON / FDDI Connectors with one plate.
· APC & Custom plates available.
· Polish 4 to 48 connectors at a time.
Polish 1500+ connectors to Bell Core specs per day, consistently using two UNI-32 fixtures.
Specifications
Figure 8 Polishing Pattern
Specifications
Radius of Curvature: 7-30 MM
Apex Offset: < 50uM
Undercut / Protrusion: < 50Nm
Back Reflection:
PC: -45dB
UPC: -55dB
APC: -65dB
Multi-Mode: -35dB
Size:
Max Connector Load: 96
Weight: 37 lbs. (16.9 Kilograms)
Dimensions: 14.5” W x 14.75"L x 14"H

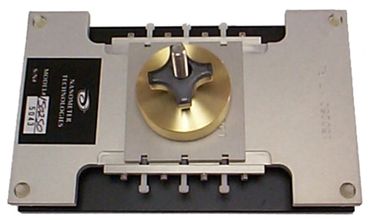

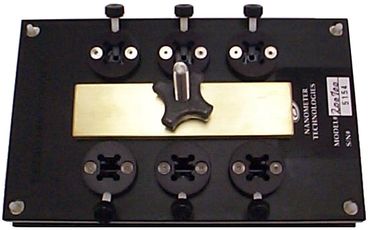

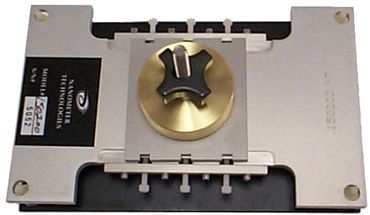

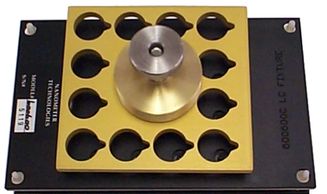

MCP-12 Fixture Plates
Additional Fixture Plates
MCP-12 Fixture Plates
600601 - 2.5mm Universal Polishing Fixture
200160-1 - FC/APC (8 position) 8.35 deg
200161-1 - FC/APC (8 position) 8.00 deg
200450 - 8 degree V-Groove (8 position)
200700 - SC/APC (6 position) 8.35 degree
200605 - SC/APC (6 position) 8.00 degree
150200 - MT/PC (6 position) Multimode
150201 - MT/PC (12 position) Multimode
150250 - MT/RJ (6 position)
150220 - MT/APC (6 position) 8.00 degree
600602 - LC/MU (12 position)
600702 - LC Snap-in (12 position)
600705 - LC/PC (24 position) 8.35 degree
600800 LC/APC 8.35 deg (12 pos)
600801-B LC/APC 8 deg (12 pos)
20000013-SL - MC5 Termini (600602 + Rifocs holder)
20000014 - 29504/4 no counter bore
20000015 - 29504/5 .094 counter bore/ 1.6mm ferrule
20000019 - 10 POS 6 DEG V GROOVE (FOR 6.5mm FERRULE)
20000020 - MCP-12 LEVEL JIG (.05" PROTRUSION)
20000021 - 10 POS 0 DEG V GROOVE (FOR 6.5mm length FERRULE)
20000022 - 16 POS 0 DEG MULTI-WAFER PLATE (4 SIZES)
20000032 - 10 POS 2 DEG V GROOVE
20000033 - MCP-12 SMA 905 .125"
20000034 - 1.3MM 0 Degree V-Groove for Titanium Ferrule
20000037 - MCP12 Mill. Conn. 29504/10
20000038 - 12 Pos. Quick Plate
20000046 - MIL29504 (Socket termini) 1.6 mm
20000047 - MIL29504-15 Packard Hughes Delphi-2mm fixture
20000048 - MIL29504-15 Packard Hughes Delphi-slider
20000049 - MIL29504-5 slider for glenair termini #181-002
20000050 - Glenair 29504-5 pin termini #181-002 1.6 mm ferr
20000051 - 600602 LC/MU, Rifocs MC5 Termini
20000058 - 12 pos IPC plate (600601 uni base)
20000059 - mcp12 10 pos custom fiber mount
20000060 - level jig for fiber mount connector
20000065 - E2000 (Diamond) 8.35deg for mcp12 10 pos
20000066 - slider for nmt-20000065 E2000 8.35deg
20000067 - MCP12 Plastic Optical Fiber (POF)
20000072 - MCP12 16 position St Plate
20000075 - lc/mu 12 position 600602 1.25mm mcp12
20000076 - 0'vgroove mcp12 29504/15
20000076LJ - 3.429mm leveling jig for 29504/15
20000085 - custom pof custom connector
20000086 - custom pof custom connector
20000086LJ - leveling jig
20000088 - T-Foca 18 pos rotary fixture 2.5mm ferrule
20000088SL - T-foca18 pos rotary slider 2.5
600705 - 24 pos LC snap in duplex/simplex for MCP12
20000110 - .5 degree v groove for SMA
20000113 - levleing jig for mcp12 v groove
20000120 - 3.1mm sma special type S.i. tech (MCP12)
200458 - cuatom v-groove
200000124 - ARINC 1.25 APC FERRULE FIXTURE MCP12
