Touchscreen Technology
Polish up to 48 connectors at once
Polish multiple connectors
The ACP-24 utilizes touchscreen technology for easy use.
Polish multiple connectors
Polish up to 48 connectors at once
Polish multiple connectors
The ACP-24 can polish many types of industry standard, military, and custom connectors
Polish up to 48 connectors at once
Polish up to 48 connectors at once
Polish up to 48 connectors at once
Our polishing fixtures can support up to 48 connectors at a time.
Figure 8 Polishing Pattern
Figure 8 Polishing Pattern
Polish up to 48 connectors at once
All Nanometer Tech line of polishers utilize our patented figure 8 polishing pattern. The figure 8 polishing pattern creates an angle of attack on the connector end face that changes 720 degrees 60 times a second giving optimal connector end face geometry.
100% control of system
Figure 8 Polishing Pattern
100% control of system
• Change polishing times, pressure, & motor speed
• Automated Fiber Stub Removal
• Easily create & save custom polishing procedures
• Factory Preset Polishing Procedures
• Touch screen interface for easy use
• Touch Screen is both water & chemical proof
• Patented Figure 8 Polishing Pattern
• Designed for High Volume SIngle & Multi mode polishing
• Consistent High Yield Repeatable Performance
• Works with existing MCP24 Fixture
Specifications
Figure 8 Polishing Pattern
100% control of system
Radius of Curvature: 7-30 MM
Apex Offset: < 50uM
Undercut / Protrusion: < 50Nm
Back Reflection:
PC: -45dB
UPC: -55dB
APC: -65dB
Multi-Mode: -35dB
Size:
Max Connector Load: 96
Weight: 37 lbs. (16.9 Kilograms)
Dimensions: 14.5” W x 14.75"L x 14"H

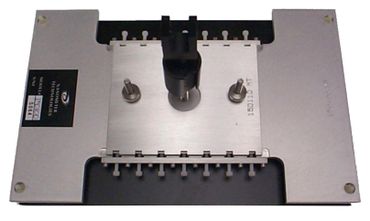

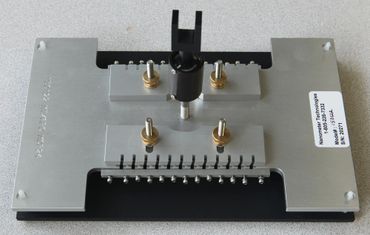

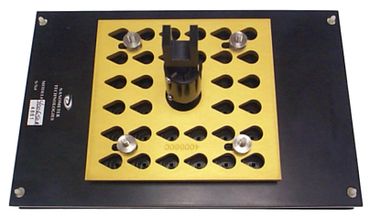

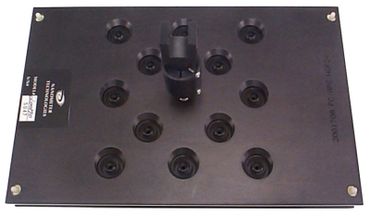

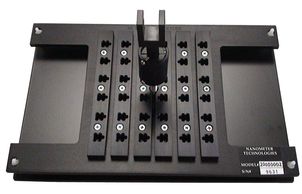

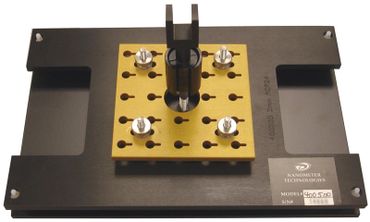

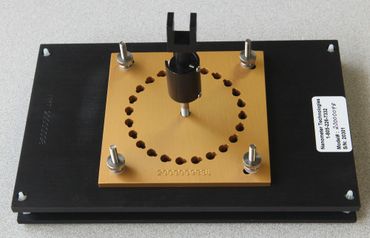

ACP-24 Fixture Plates
Additional Fixture Plates
Fixture Plates
400601 - 2.5mm Universal Polishing Fixture (24 position)
400650 - 2.5mm Universal Polishing Fixture (32 position)
400648 - 2.5mm Universal Polishing Fixture (48 position)
150100 - MT/PC (14 position) multimode
150130 - MT/PC (24 position) multimode
150150 - MT/RJ (14 position)
150120 - MT/APC (14 position) singlemode
150122 - MT/APC (24 position) singlemode
200171-1 - APC Ferrule Fixture (12 position) 8.35 degree
200175-1 - APC Ferrule Fixture (12 position) 8.00 degree
200600 - SC/APC (12 position) 8.35 degree
200610 - SC/APC (12 position) 8.00 degree
200620 - SC/APC (22 position) 8.35 degree
200630 - SC/APC (22 position) 8.00 degree
200170-1 - FC/APC (12 position) 8.35 degree
200172-1 - FC/APC (12 position) 8.00 degree
200177-1 - FC/APC (24 position) 8.35 degree conical
200178-1 - FC/APC (24 position) 8.00 degree
400701 - LC/MU (24 position)
400702-B - LC Snap-in (24 position)
400705 - LC Snap-in Duplex/Simplex (48 position)
400772 - LC Snap-in Duplex/Simplex (72 position)
400800-B - LC/APC (24 position) 8.00 degree
400801 - LC/APC (24 position) 8.35 degree
2000001 - 1.8MM V-Groove
2000002 - Snap-In LC (36 Pos)
2000003 - E2000 8.35 Deg ferrule fixture Huber & Suhner
2000004 - SMA.125" 905 type
2000005 - Custom 32 pos uni
2000007 - 8 deg v-groove array (wafer) 14 pos
2000008 - APC Ferrule Fixture 6.35 deg 12 Pos
2000009 - Wafer
20000010 - Single Step Fixture
20000011 - 14 pos 16 Fiber 8 deg MTP plate
20000012 - 36 Pos Titanium Fixture
20000016 - 14 Pos 16 Fiber MTP Plate
20000017 - E2000 8.35 Deg ferrule fixture diamond usa (R& M)
20000018 - LC APC (8.00)
20000023 - MCP-24 2mm LEVEL JIG
20000024 - 6 DEG VGROOVE MCP24
20000025 - 10 DEG VGROOVE MCP24
20000026 - .150 LEVEL JIG MCP24
20000027 - 29504 24 pos ( same as 46 plate for MCP12)
20000028 - MILL. CONN. M29504/05 24 POS.SLIDER
20000029 - Custom 24 Pos
20000030 - Custom 32 pos uni
20000031 - 24 POS CUSTOM SLIDER FOR UNI-24
20000035 - MCP24 0 Deg V-Groove
20000036 - Ferrule Leveling Jig
20000039 - MCP24 0 Deg V-Groove (Short Ferrule)
20000040 - Ferrule Leveling Jig
20000041 - Mil29504/4 long ferrule(J-techAmphenol/Glenair)1.6mm
20000042 - 1mm Leveling Jig
20000043 - MCP24 2.5mm 0 Deg V-Groove
20000044 - 2.5mm Level Jig
20000045 - 1 Piece Escon Fixture Snap-In
NMT400615 - ST/PC amp overmolded connector design (24 pos)
20000052 - 24 position Fixture Plate (illuminating plate)
20000053 - slider for 20000052 (illuminating plate)
20000054 - APC Polish Fixture for PHD termini (18 pos) for MCP24
20000055 - level jig for 0 deg v-groove.0040' for p/n (20000041)
20000056 - 400601 base plate (new plate w/o p/n to be built)
20000057 - 29504/5 s;ider fixter /same as 46 for MCP12
20000061 - MCP24 Plastic Optical Fiber-32 pos
20000062 - MCP24 Radiall Luxcis Termini
20000063 - MCP24 Plastic Optical Fiber (POF)
20000064 - MCP24 Plastic Optical Fiber (POF)
20000068 - MCP24 Bare Fiber fixture
20000069 - Metal Connector
20000070 - Radial Luxis Termini MCP12 (12 pos) slider
20000071 - SC/APC 8 deg
20000077 - lc/mu 400701 with lower ferrule nipple
20000079 - Mil29504/14&15(delphi-mil&comercial/Amphenol/FSI)2mm
20000083 - Mil29504/5(J-tech/Amphenol/Glenair)1.6mm ferrule
20000084 - lc/apc ferrule fixture (custom)
20000089 - 8.35 apc fixture for mu/apc MCP24
200173-1 - 2.5 apc ferrule fixture 11 degrees
20000094 - Dual v-groove fixture every other flat ever other 4.5 degrees
20000098 - TFOCA II plate 1/4 inch bottom plate longer ferrule
20000099 - 0 degree vgroove (2mm - 1.25mm ferrule)
20000101 - regular 14 pos very shallow groove small connector
20000102 - TFOCAII plate 3/16 thickness for 6.30mm ferrule
400801 - 8.35 LC/APC polishing fixture
400500 - 29504/14 & 15 Military ferrule fixture
400705 - 48 pos lc snap in plate f
20000101 - regular 14 pos very shallow groove small connector
20000114 - ARINC 1.25 APC FERRULE FIXTURE MCP24
20000115 - APC ferrule fixture Lancer
20000116 - APC ferrule fixture Lancer
200700 - SC/APC custom 24 pos. plate
20000122 - Leveling jig
20000126 - Avago HFBR connectors
20000127 - sllider
21111128 - T-Foca II 24 pos rotary fixture 2.5mm ferrule
20000129 - 0'degree v-groove same as 41 but 18 pos instead of 14 pos
