Consumables

Need lapping film and Rubber Pads for your Polisher?

Nanometer Technologies carries 3M™ Imperial Diamond lapping film in 6, 3, 1.5, 1, & .5 micron grades.  We also stock a variety of Silicon Carbides & Aluminum Oxides. Sizes 4.5", 6", and 8.5" are all now in stock and available for next day delivery.

Our Rubber Pads are Silicon based and are available in 40 - 80 Durometer. Our 80 Durometer pads are fiberglass reinforced. Rubber Pads are available in 4.5", 6", and 8.5" sizes.

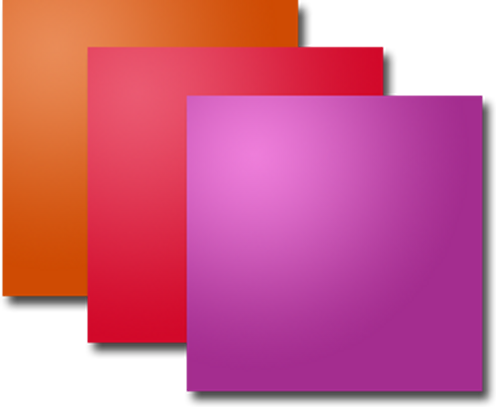

Lapping Film

Mineral: Industrial grade diamonds

Backing: polyester film - 3 mil - Ultimate tensile strength

Bond: resin - medium hardness

Recommended Storage Conditions: Temp. 50-100° F/relative humidity 30-70% (There is no performance degradation with time. It is recommended that product be used within 24 months of purchase.)

Applications: Ceramic, glass, stone, carbide, composites, exotic alloys and other hard to grind materials.

NOTE: This film is not for use with MT connectors.



Lapping Film

DIAMOND

SILICON CARBIDE

SILICON CARBIDE

3M Diamond:

4.5" x 4.5"

0.1uM, 0.5uM, 1uM, 3uM, 6uM, 9uM, 15uM, 30uM


3M Diamond:

6" x 6"

0.1uM, 0.5uM, 1uM, 3uM, 6uM, 9uM, 15uM, 30uM, 45uM


3M Diamond:

8.5" x 8.5"

0.1uM, 0.5uM, 1uM, 3uM, 6uM


3M Diamond DISC 5":

0.5uM, 1uM, 1.5uM, 3uM, 6uM, 9uM, 15uM

SILICON CARBIDE

SILICON CARBIDE

SILICON CARBIDE

3M Silicon Carbide:

4.5" x 4.5"

3uM, 5uM, 9uM, 15uM, 30uM


3M Silicon Carbide:

6" x 6"

3uM, 5uM, 9uM, 15uM, 30uM


3M Silicon Carbide:

8.5" x 8.5"

15uM


3M Silicon Carbide DISC 5":

15uM, 30uM


MOYCO Silicon Carbide:

6" x 6"

1uM, 3uM, 5uM, 15uM




CERIUM OXIDE

SILICON CARBIDE

ALUMINUM OXIDE

3M Cerium Oxide:

4.5" x 4.5"

0.5uM


3M Cerium Oxide:

6" x 6"

0.5 uM

ALUMINUM OXIDE

DIAMOND METAL BONDED DISCS

ALUMINUM OXIDE

3M Aluminum Oxide:

6" x 6"

0.05uM, 0.3uM, 1uM, 3uM, 5uM, 9uM, 12uM


3M Aluminum Oxide:

8.5" x 8.5"

1uM, 3uM, 5uM, 9uM, 12uM

FINAL POLISHING FILM

DIAMOND METAL BONDED DISCS

DIAMOND METAL BONDED DISCS

3M Final Polishing Film

4.5" x 4.5"


3M Final Polishing Film

6" x 6"


3M Final Polishing Film FLOCKED

6" x 6"


3M Final Polishing Film

8.5" x 8.5"


3M Final Film DISC 5"


NTT Final Polishing Film

6" x 6"

DIAMOND METAL BONDED DISCS

DIAMOND METAL BONDED DISCS

DIAMOND METAL BONDED DISCS

3M Diamond Metal Bonded Disc 5"

15 uM, 30uM

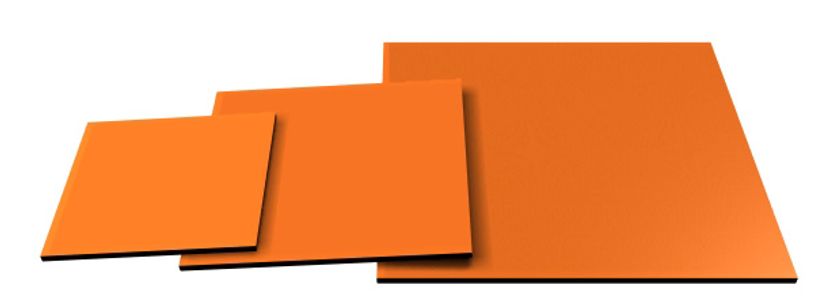

Rubber Pads

Mineral: Silicon based or Fiberglass Reinforced

Sizes: 4.5" for MCP 12

             6" for MCP 24

          8.5" for MCP 48

Durometer: 40, 50, 60, 70, & 80.

(80 Durometer available in Fiberglass reinforced only.)

Get a Quote

Consumables Quote Form
